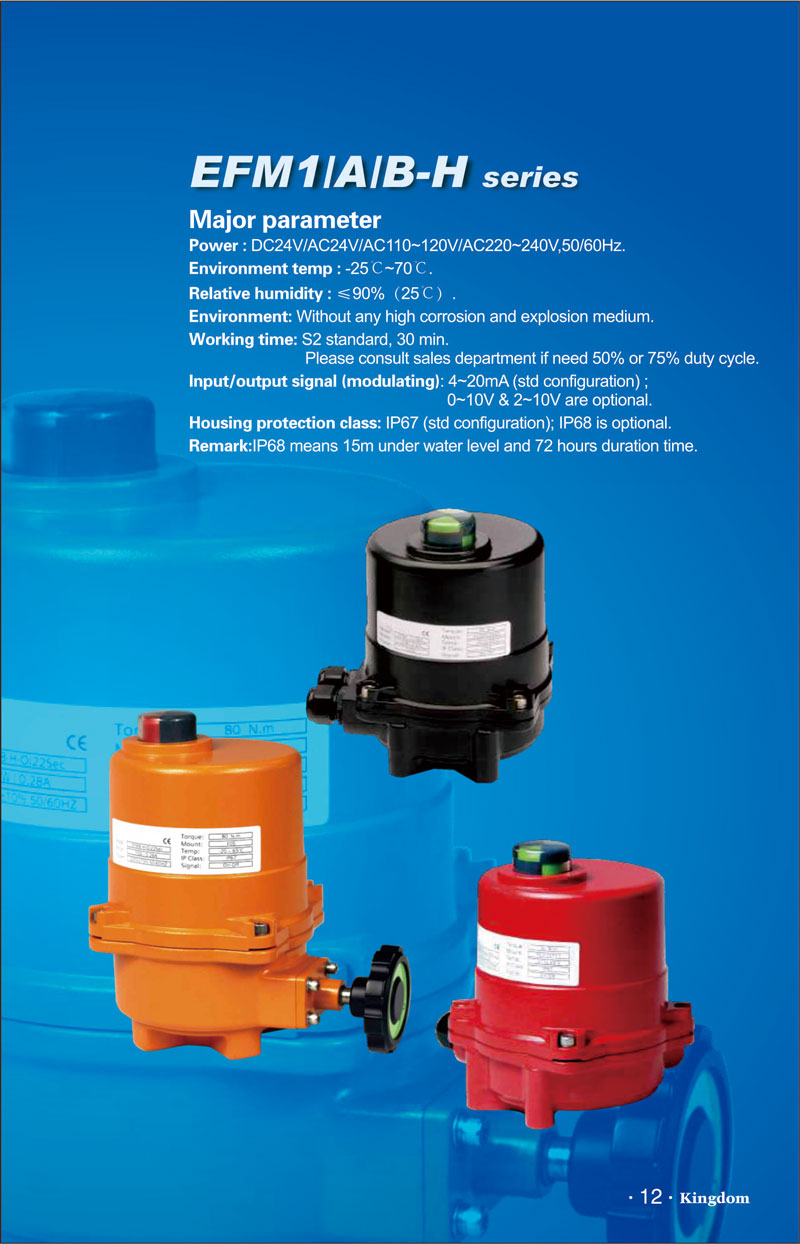

EFM1-A-B - H series


Major Parameter



  • Power : Power : DC24V / AC24V / AC110~120V / AC220~240V, 50 / 60Hz.
  • Environment temp : -25℃ ~ 70℃
  • Related humidity : ≤90% (25℃)
  • Environment : Without any high corrosion and explosion medium.
  • Working time : S2 standard, 30 min. Please consult sales department if need 50% or 75% duty cycle.
  • Output signal (On-off type) : Folly open & fully close passive contact (2A 250VAC).
  • Input / output signal (modulating type) : 4-20mA (std configuration) ; 0~10V & 2-10V is optional.
  • Housing protection class : IP67 (std configuration) ; IP68 are optional.
  • Remark : IP68 means 15m under water level and 72 hours duration time.
