EN PN10-40 Reduced Port
We believe in Simple & CreativeEN PN10-40 Reduced Port
KV-L5J(I), L5K(I), L5M(I), L5N(I)
3 & 4 - Way Reduced Port Flanged Ends Ball Valve
- PN10 - L5J(I), PN16 - L5K(I), PN25 - L5M(I), PN40 - L5N(I)
- Reduced Port
- Built-in ISO 5211 Direct Mounting Pad Easy Automation
- TFM 1600 Seats
- Size DN100-200
- TA-Luft Design Approved
, L5K(I), L5M(I), L5N(I)-20231024-3.gif)
,K(I), M(I), N(I)-04-20210909.gif)
, L5K(I), L5M(I), L5N(I)-20231024-1.gif)
,K(I), M(I), N(I)-02-20210909.gif)
Related Products :

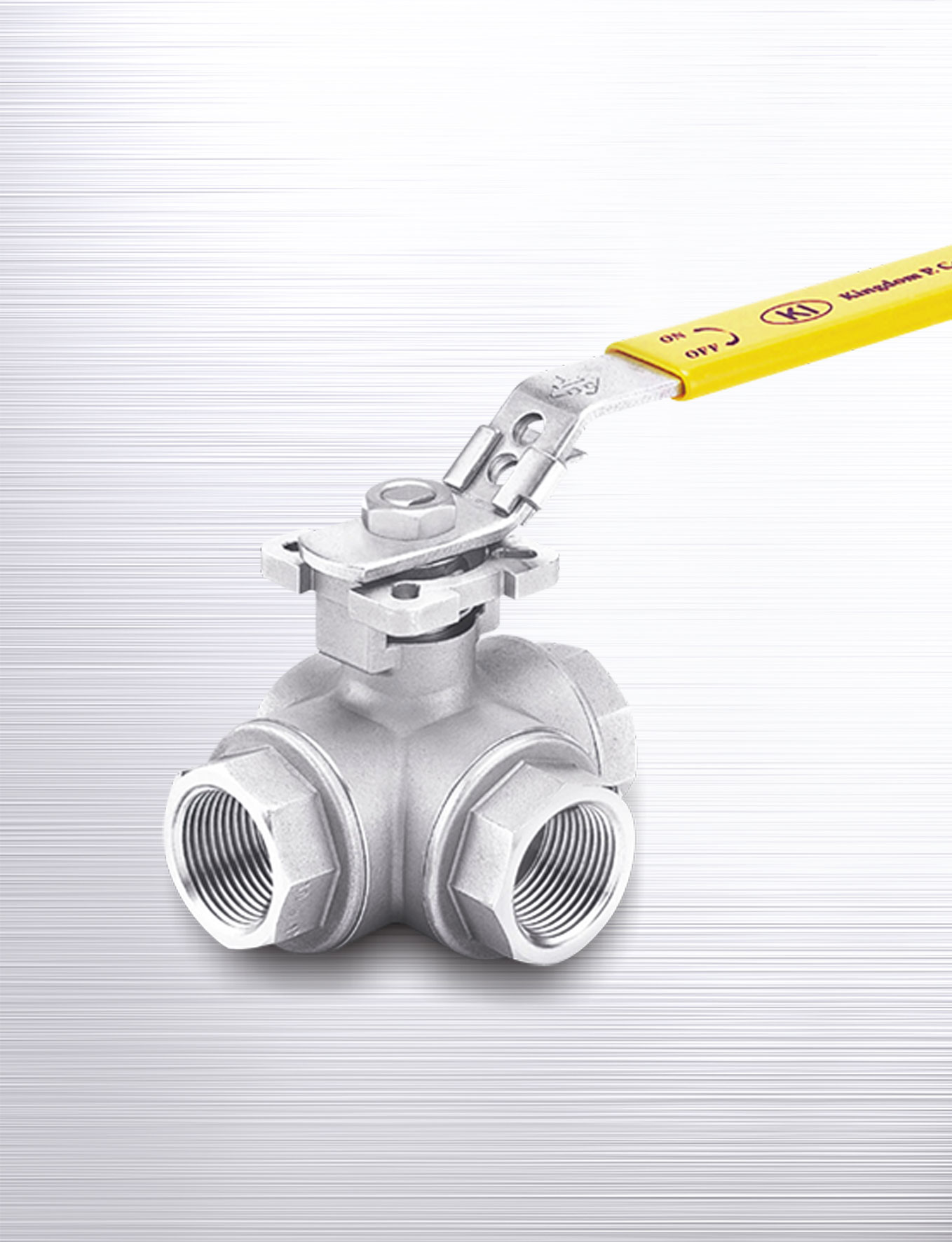

3-Way 1000 WOG, Reduced Port
