DIN PN10, DIN PN16, DIN PN25, DIN PN40


KV-M4J KV-M4K KV-M4M KV-M4N
KV-M6J KV-M6K KV-M6M KV-M6N (Fire Safe Type)

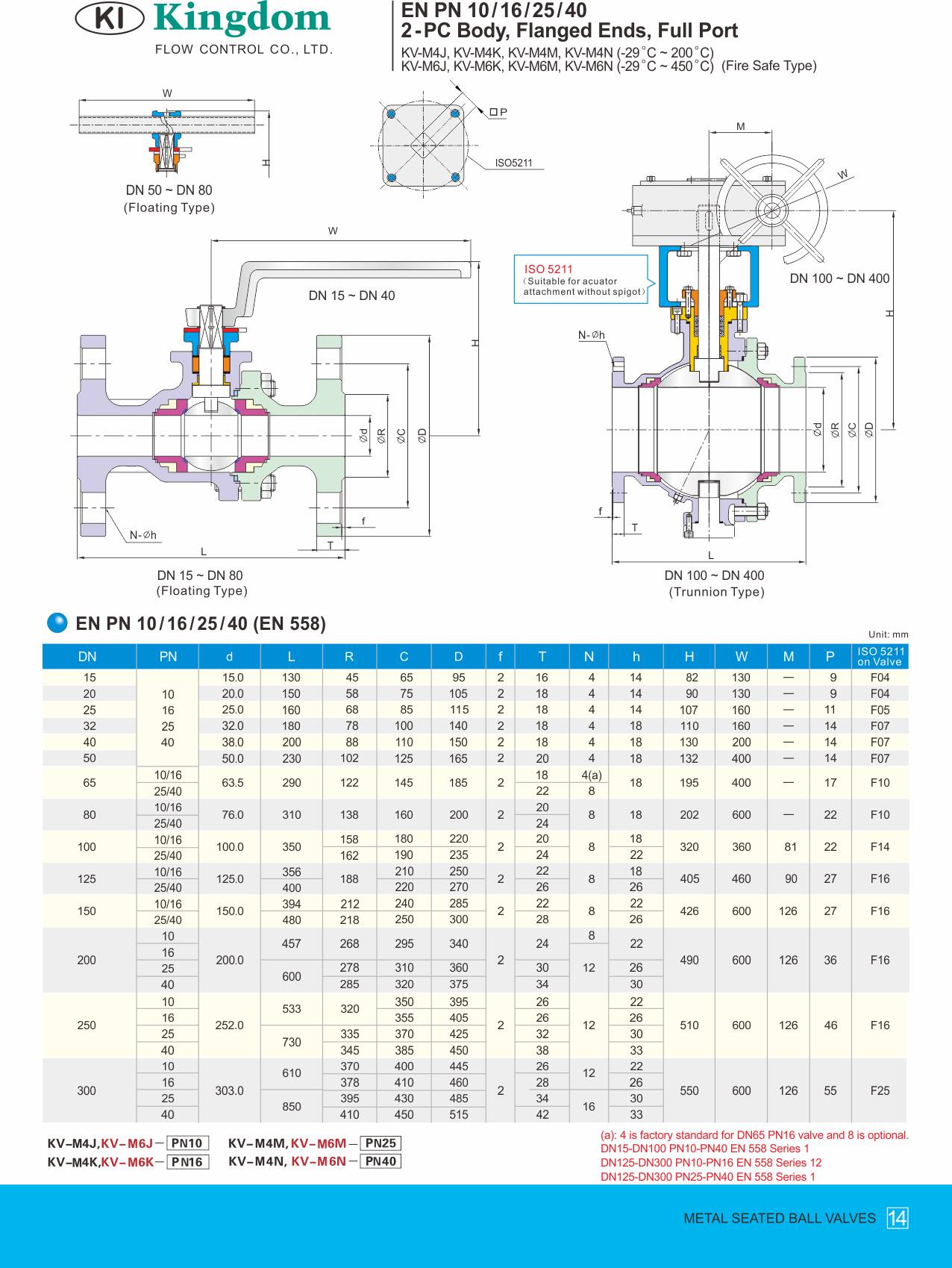

2 PC PN10-40 Flanged End Metal-Seated Ball Valve



  • PN10 (M4J / M6J), PN16(M4K / M6K) PN25 (M4M / M6M), PN40 (M4N / M6N)
  • Floating Type : 1/2” ~ 3”;
  • Trunnion Type : 4” and above
  • Full Port Top Mounting Pad
  • Seats are available in various materials
  • Temperature Range : -29°C~200°C(M4J / M4K / M4M / M4N) & -29°C~450°C (M6J / M6K / M6M / M6N)
  • Size DN 15 - 300
