JIS 10K , JIS 20K_Direct Mount
We believe in Simple & CreativeJIS 10K , JIS 20K_Direct Mount

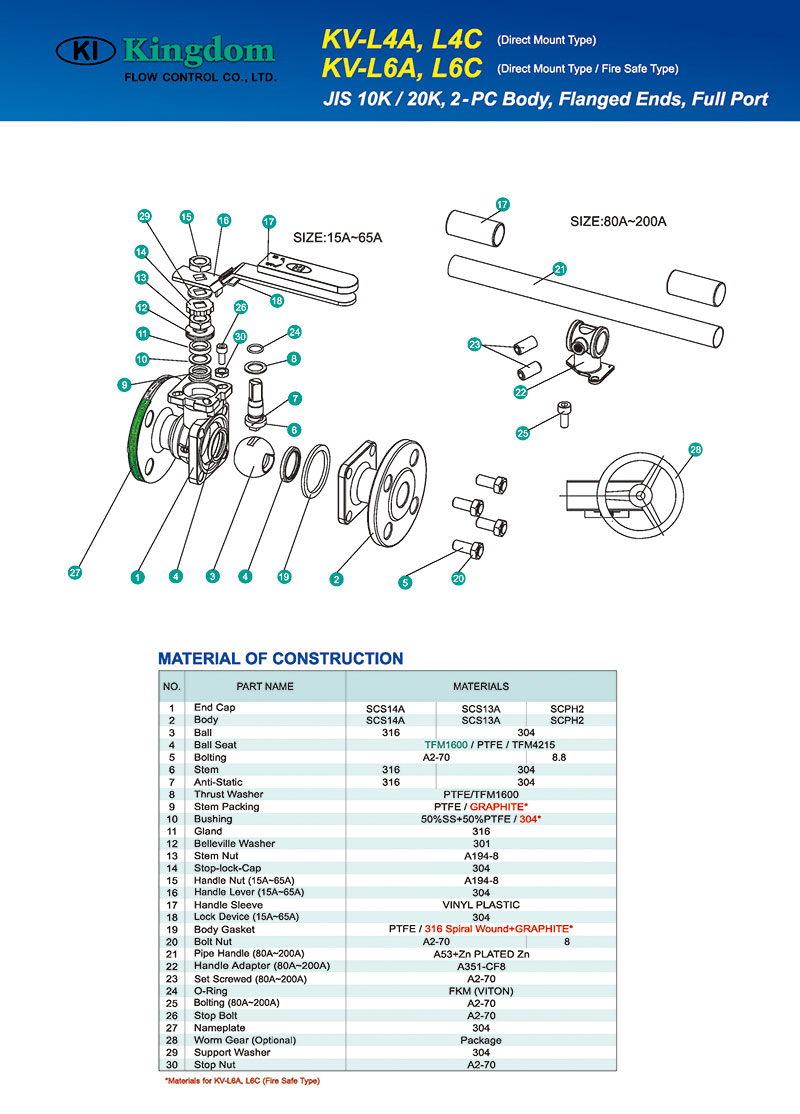

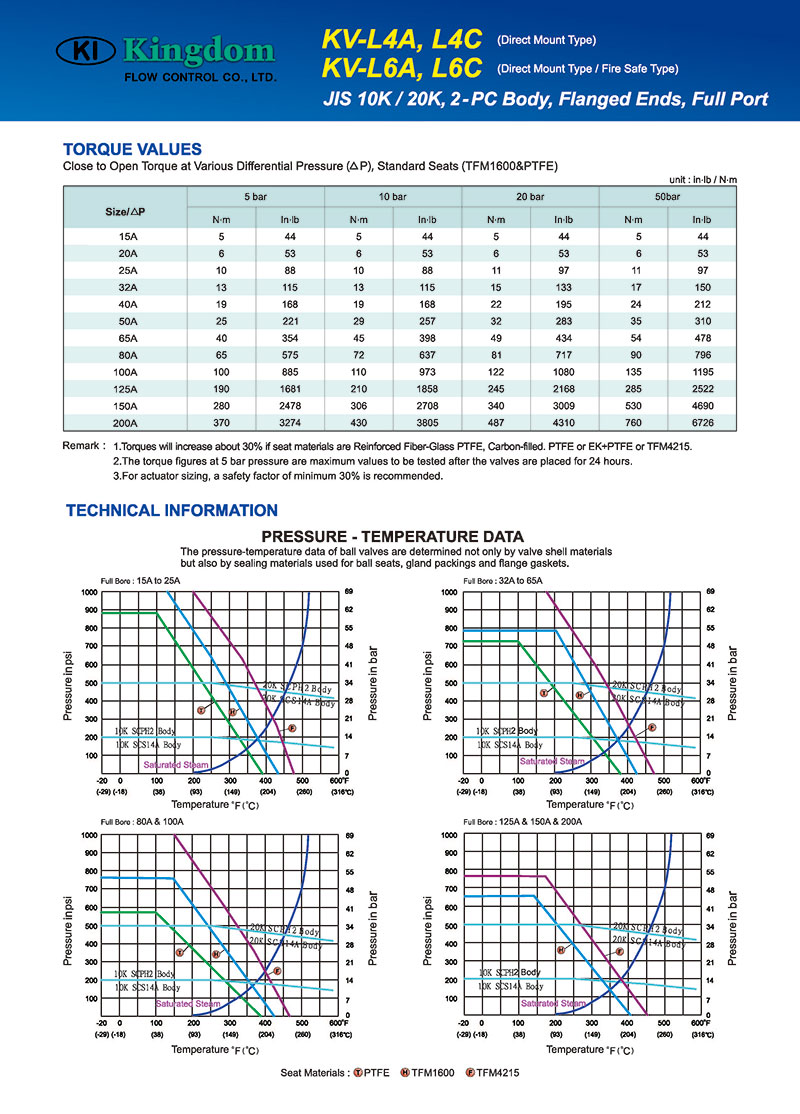

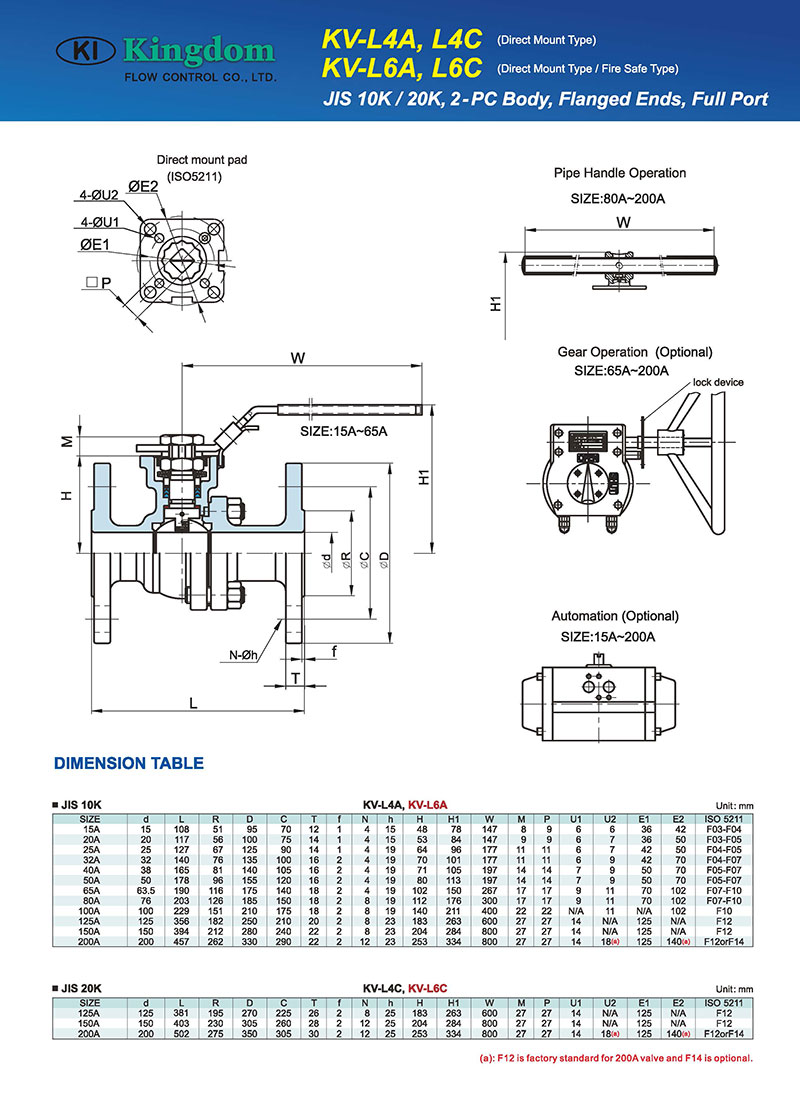

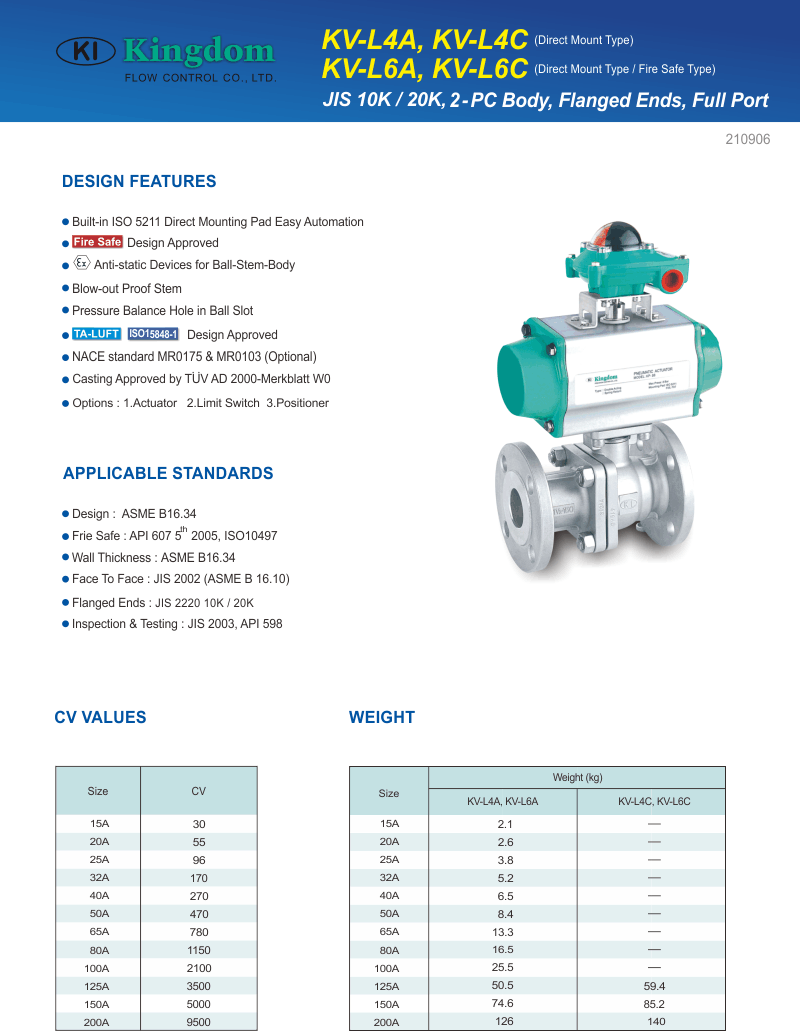

KV-L4A,L4C (Direct Mount Type)
KV-L6A,L6C (Direct Mount Type/Fire Safe Type)
JIS 10K / 20K
2-PC Body, Flanged Ends, Full port
- 10K (L4A / L6A) & 20K (L4C / L6C)
- Full Port
- ISO 5211 Pad for Direct Actuation
- TFM 1600 Seats
- Size 15-200A TA-Luft approved
