ASME Class 150-300 (Bracket Mount)
We believe in Simple & CreativeASME Class 150-300 (Bracket Mount)

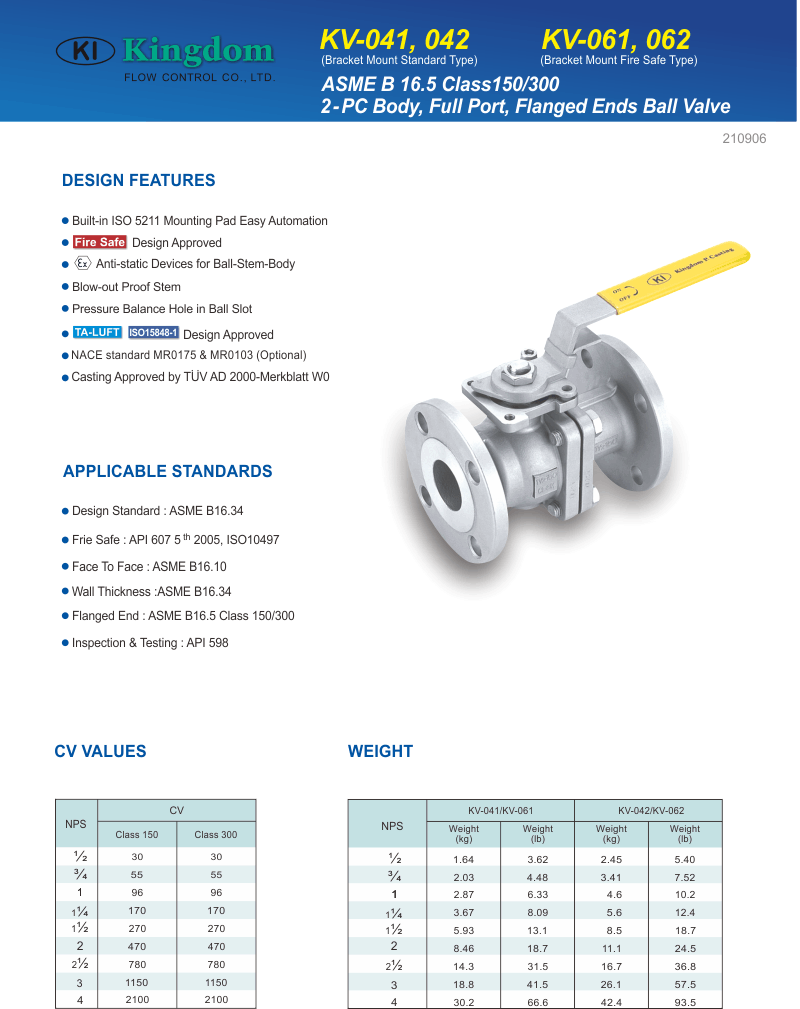

KV-041,042 (Bracket Mount Type)
KV-061,062 (Bracket Mount Type/Fire Safe Type)

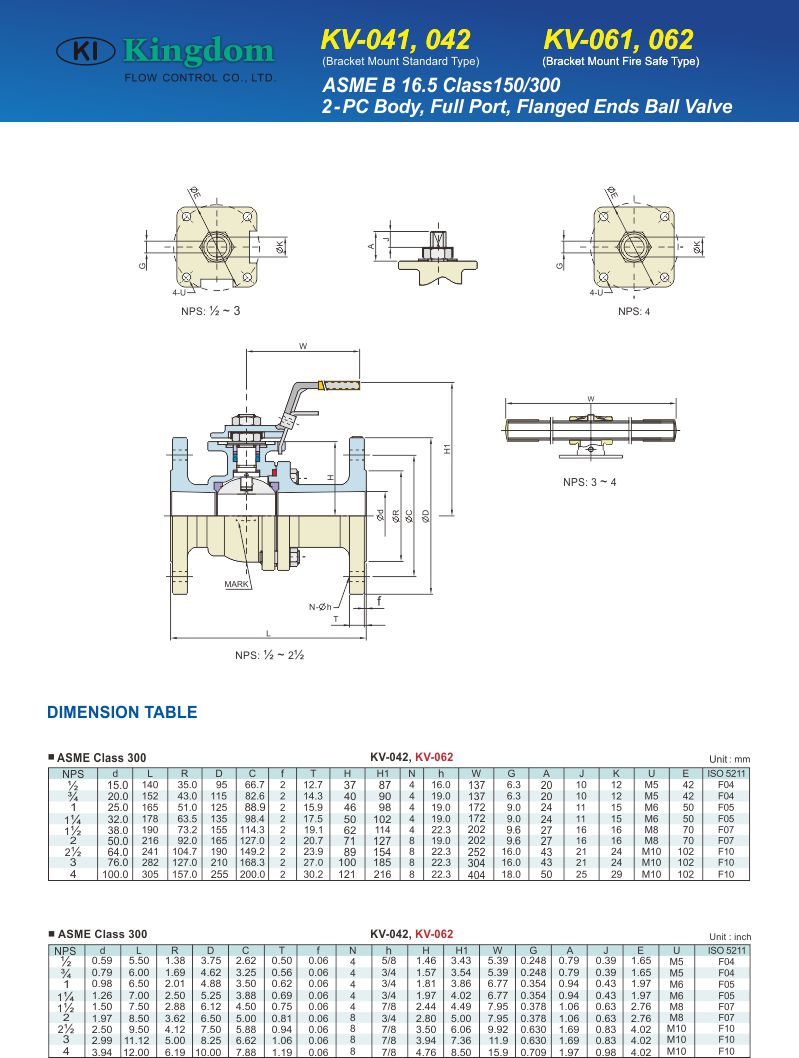

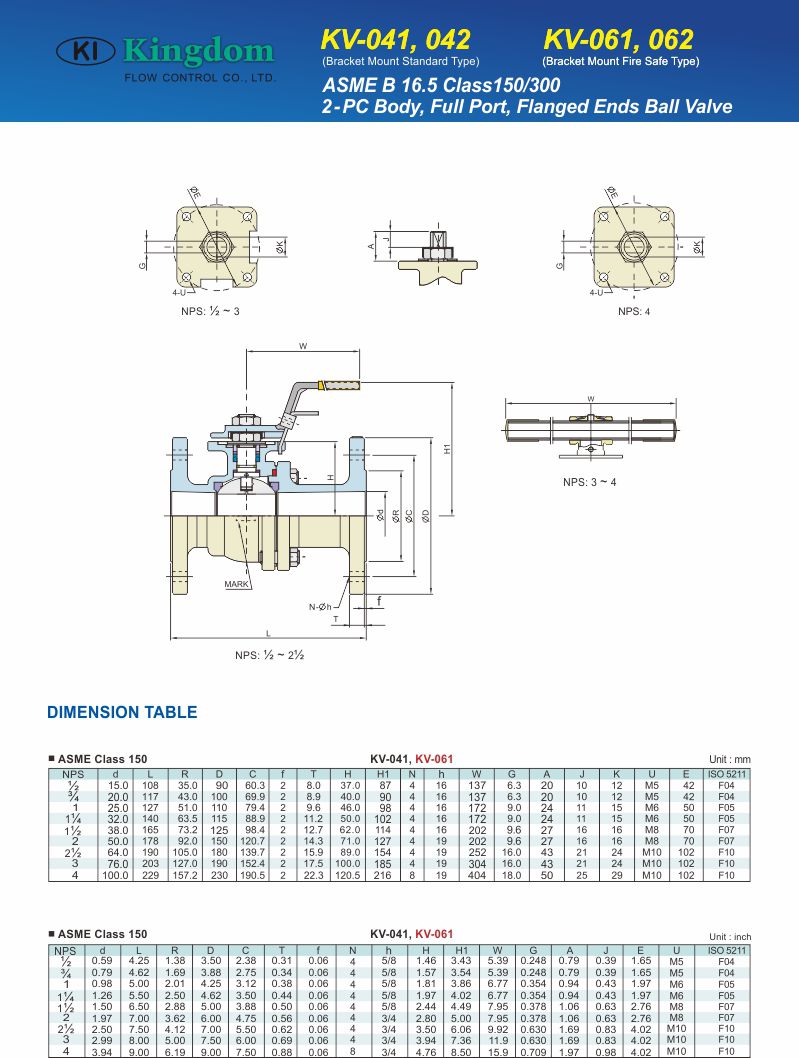

ASME Class 150 / 300
2-PC Body, Flanged Ends, Full Port
- 150# (041 / 061) & 300# (042 / 062)
- Full Port ISO 5211 Mounting Pad

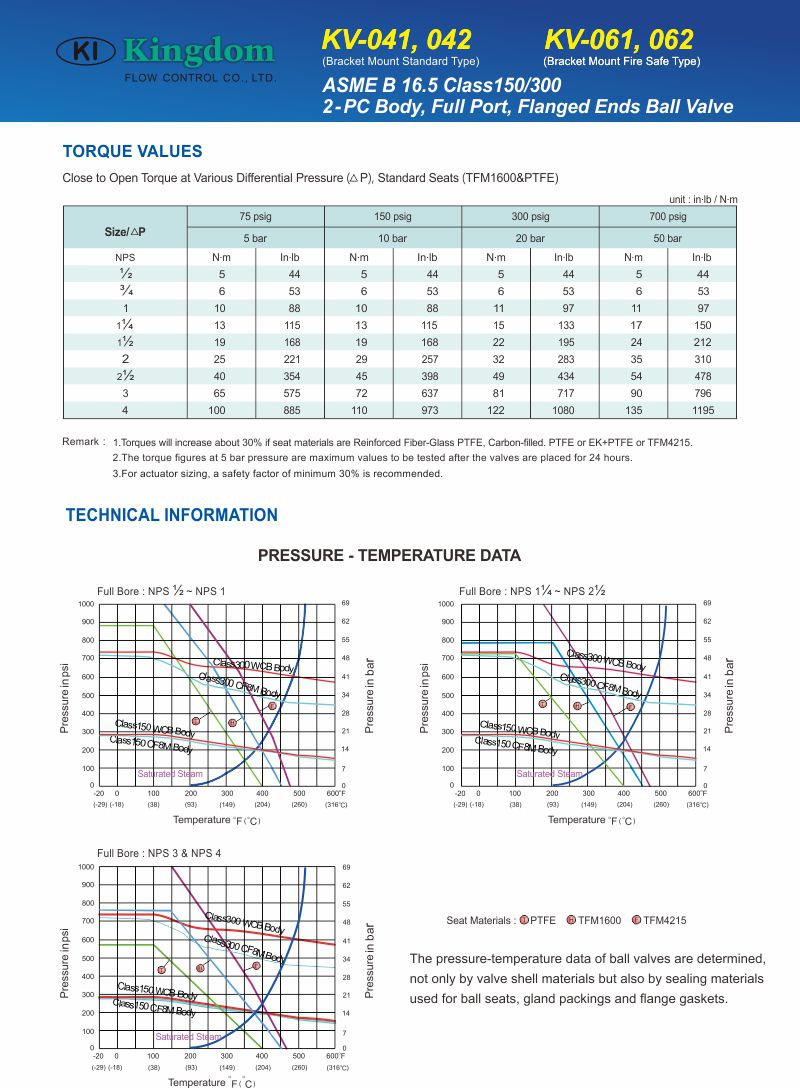

- TFM 1600 Seats
- Size 1/2” ~ 4”
- TA-LUFT approval
