ASME Class 150-300 (API-608 )
We believe in Simple & Creative

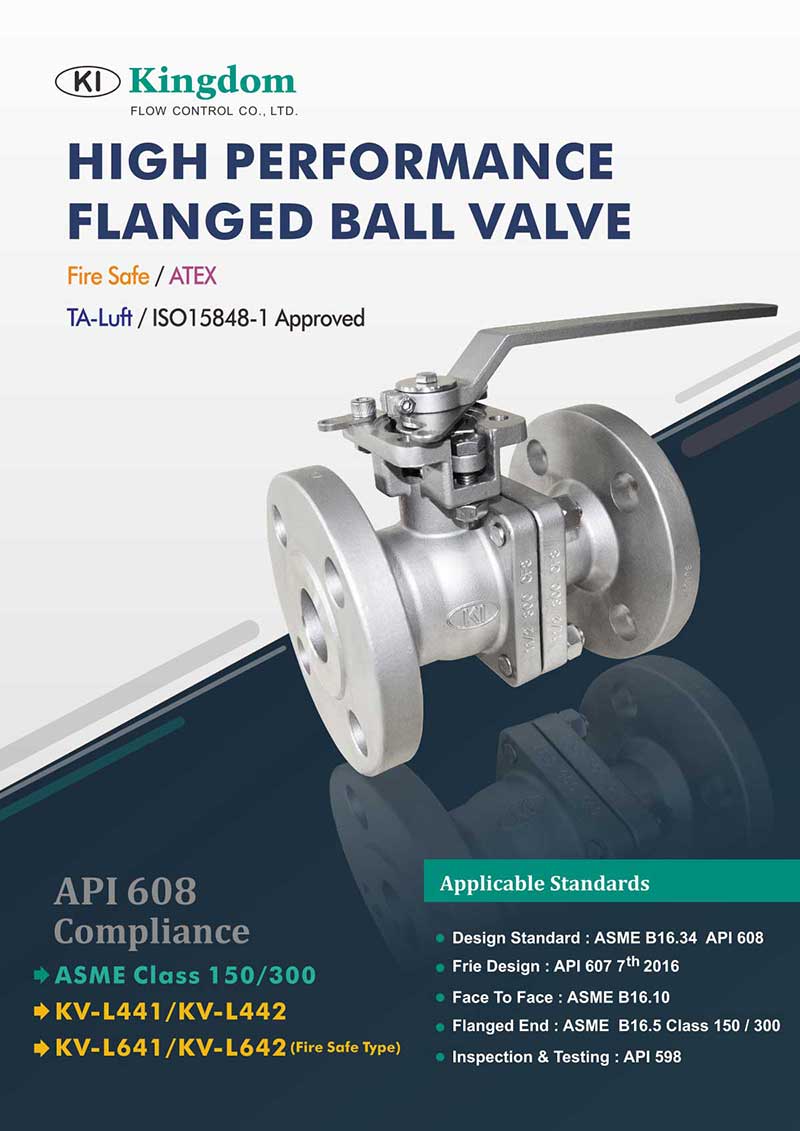

ASME Class 150-300 (API-608 )
KV-L441,L442 (Direct Mount Type)

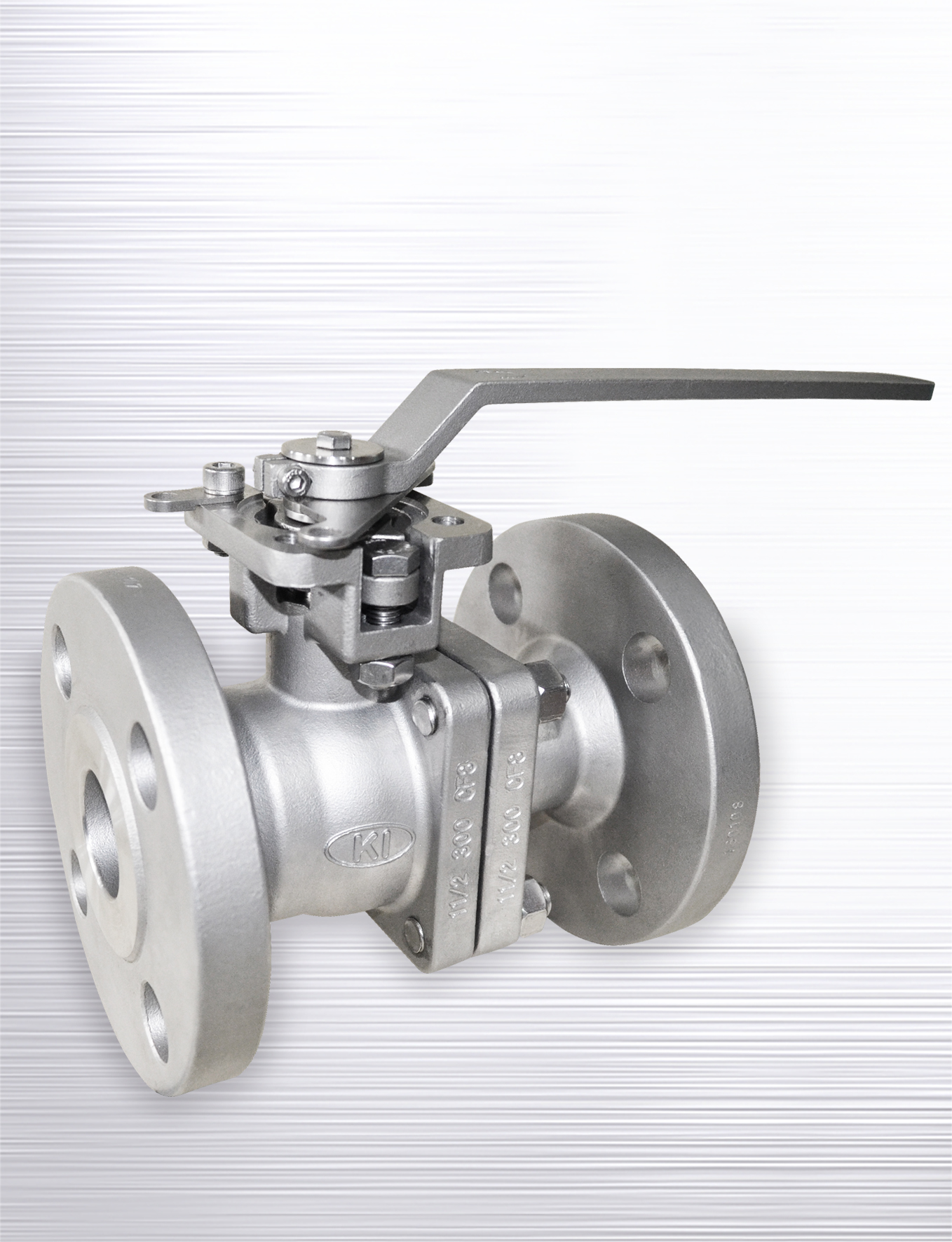

KV-L641,L642 (Direct Mount Type/Fire Safe Type)

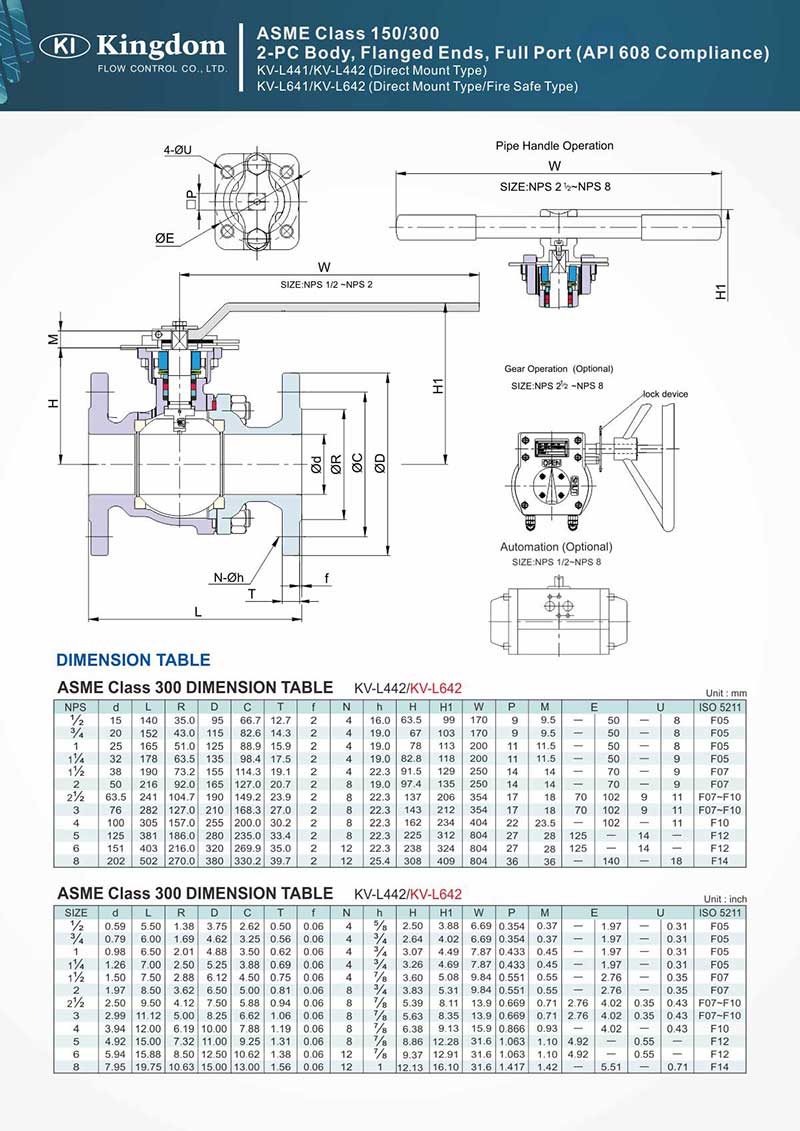

ASME B 16.5 Class 150/300

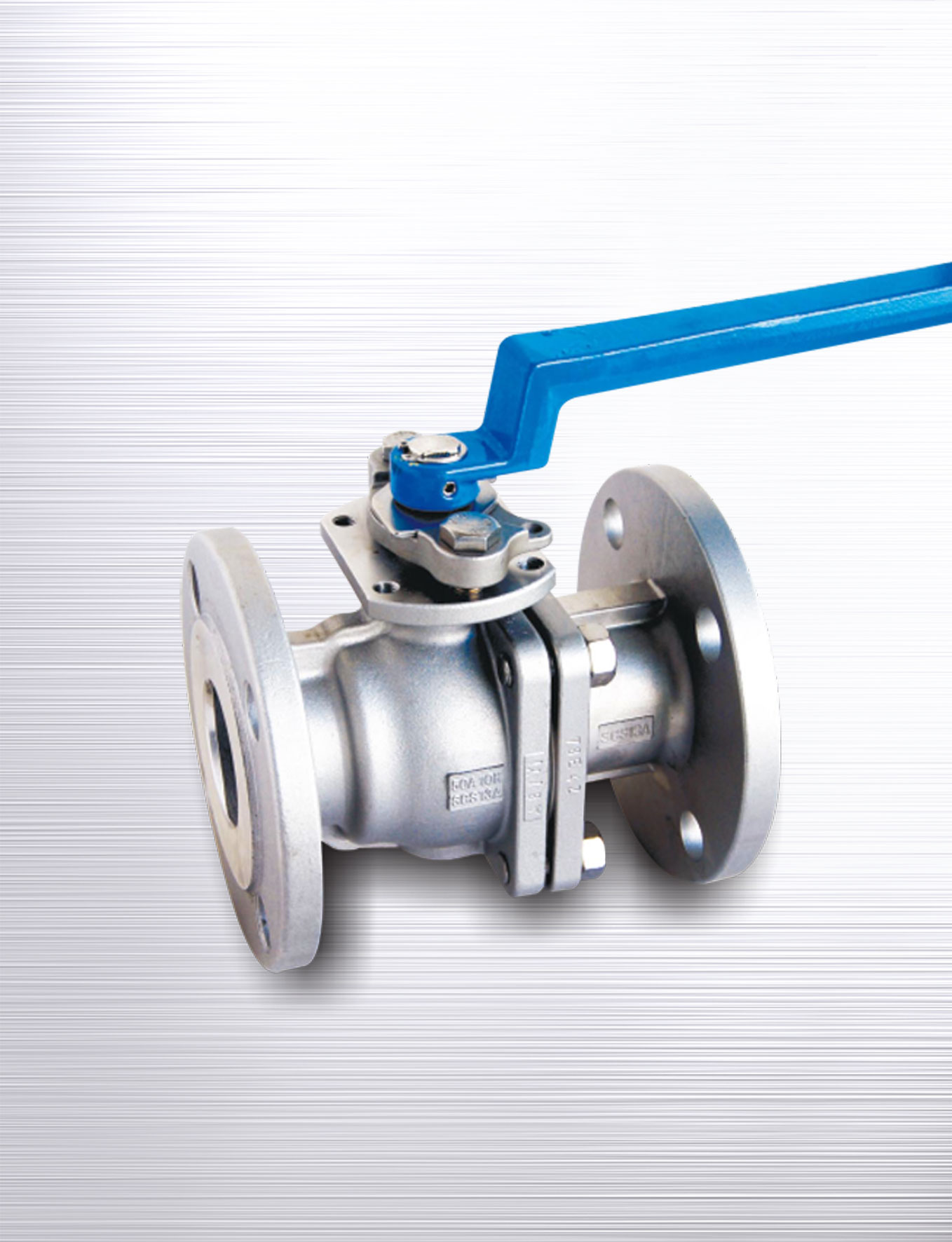

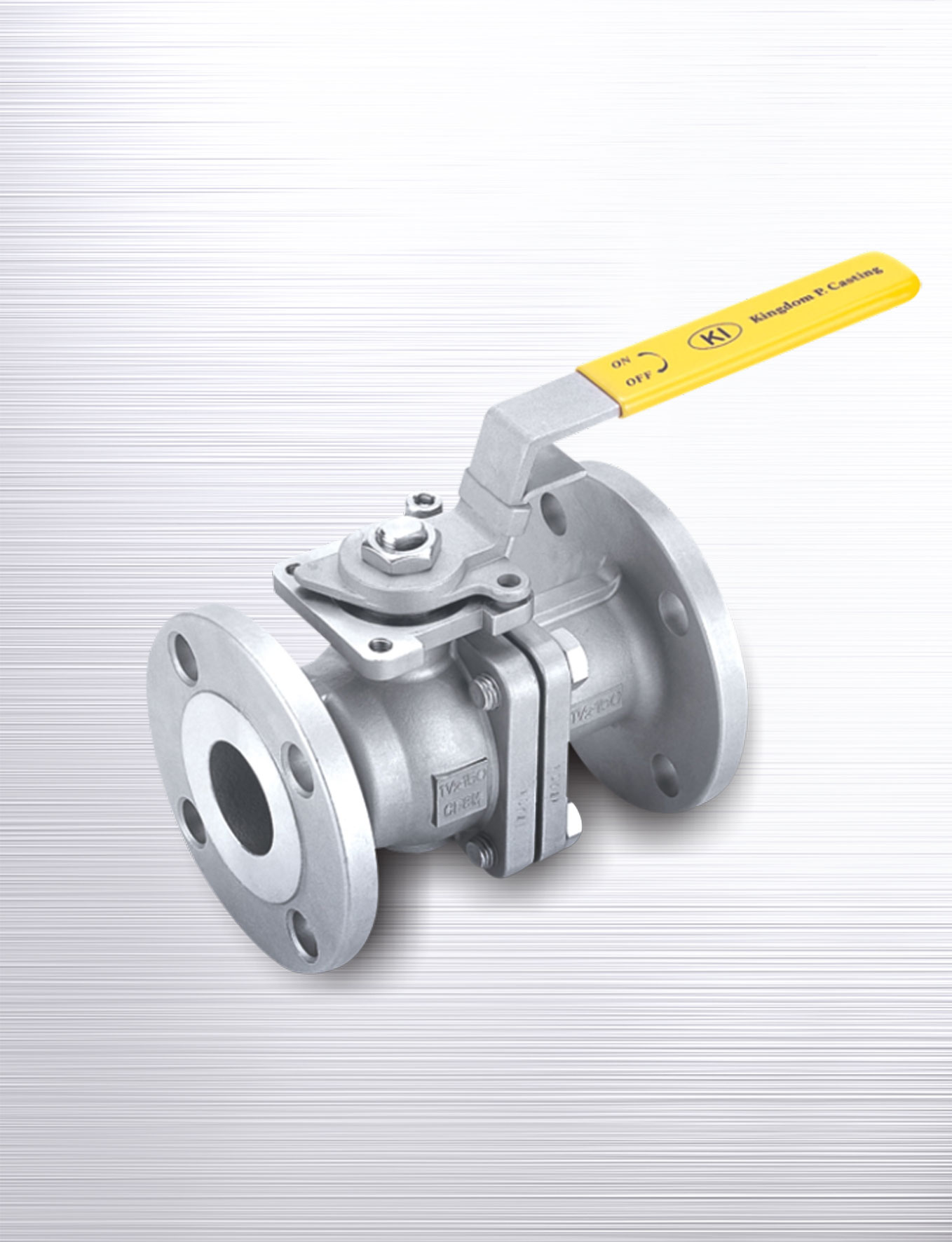

2-PC Body, Flanged Ends, Full Port

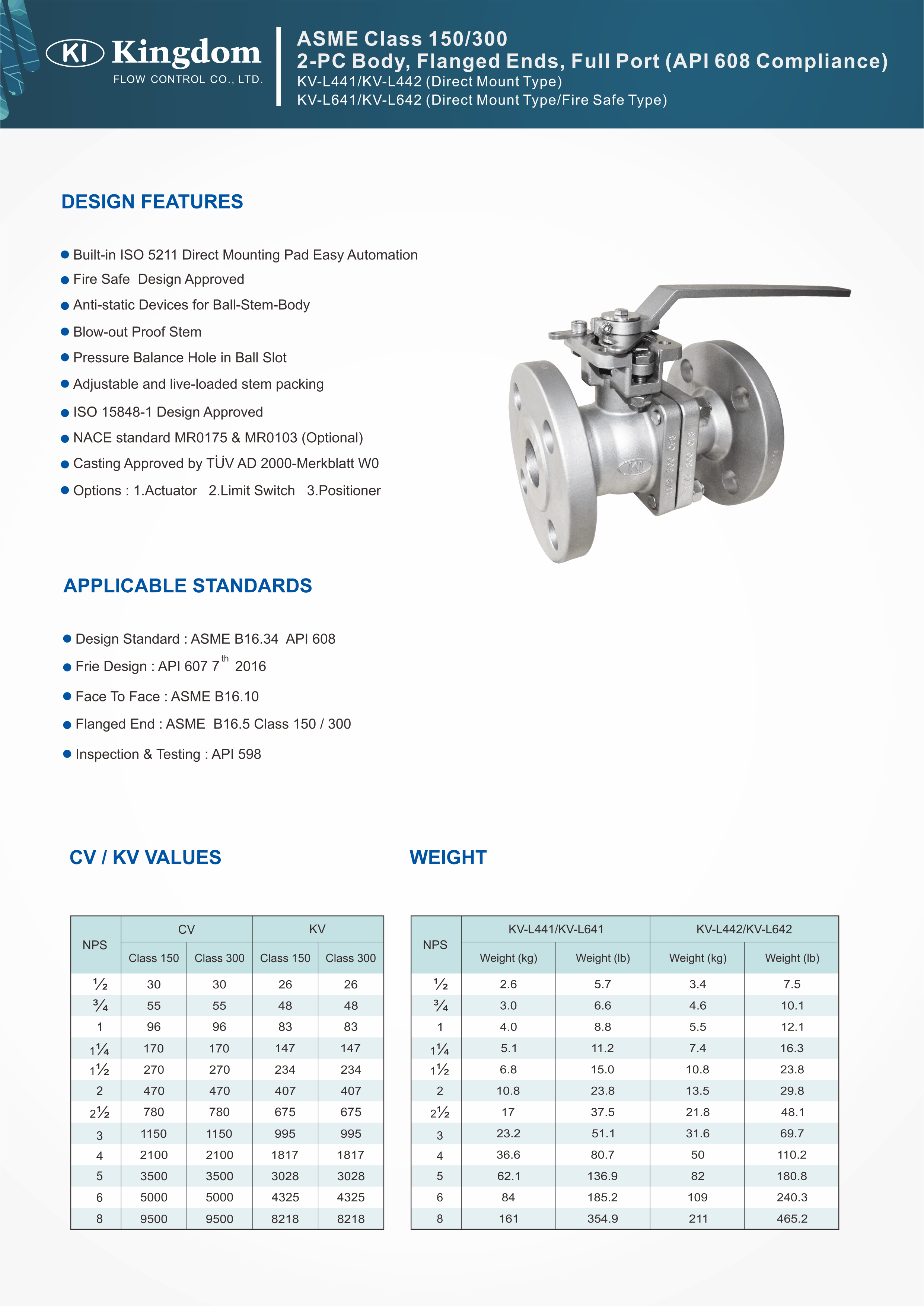

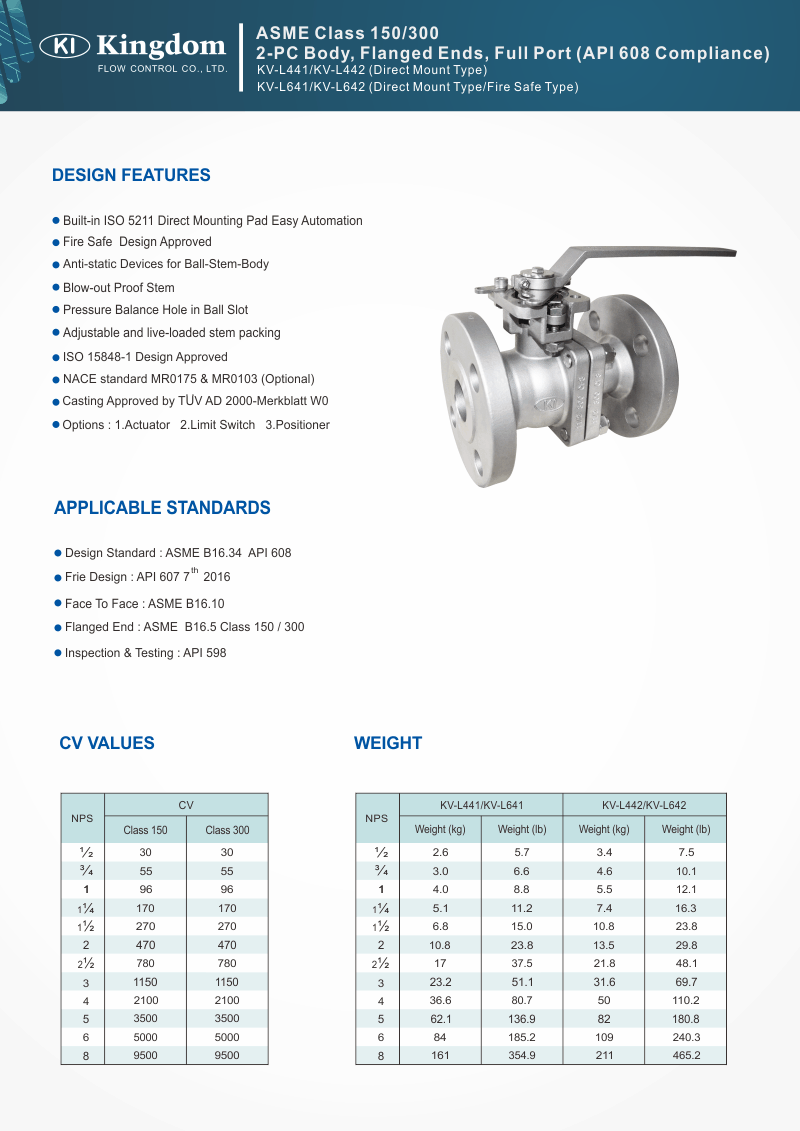

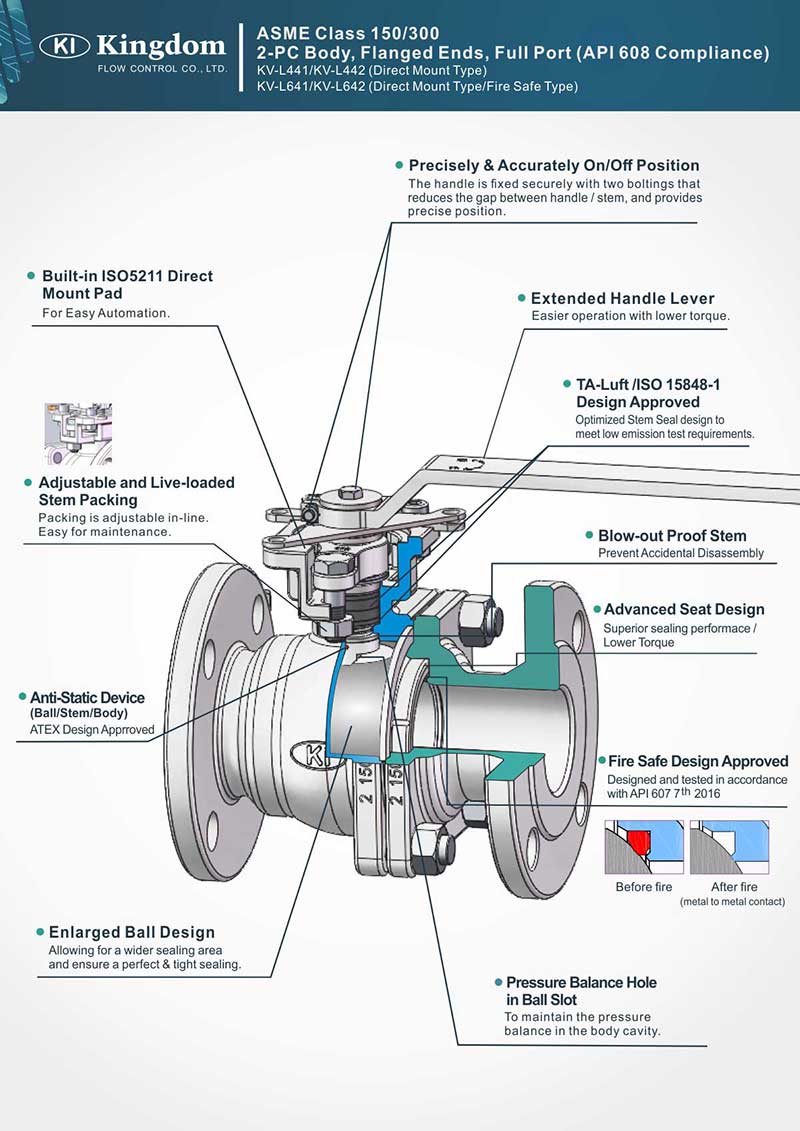

- Full Port
- Size 1/2” ~ 8”
- Built-in ISO 5211 Direct Mounting Pad Easy Automation
- Fire Safe Design Approved
- Anti-static Devices for Ball-Stem-Body
- Blow-out Proof Stem
- Pressure Balance Hole in Ball Slot
- Adjustable and live-loaded stem packing
- ISO 15848-1 Design Approved
- Nace MR-0175 (Optional)
- Casting Approved by TUV AD 2000-Merkblatt W0

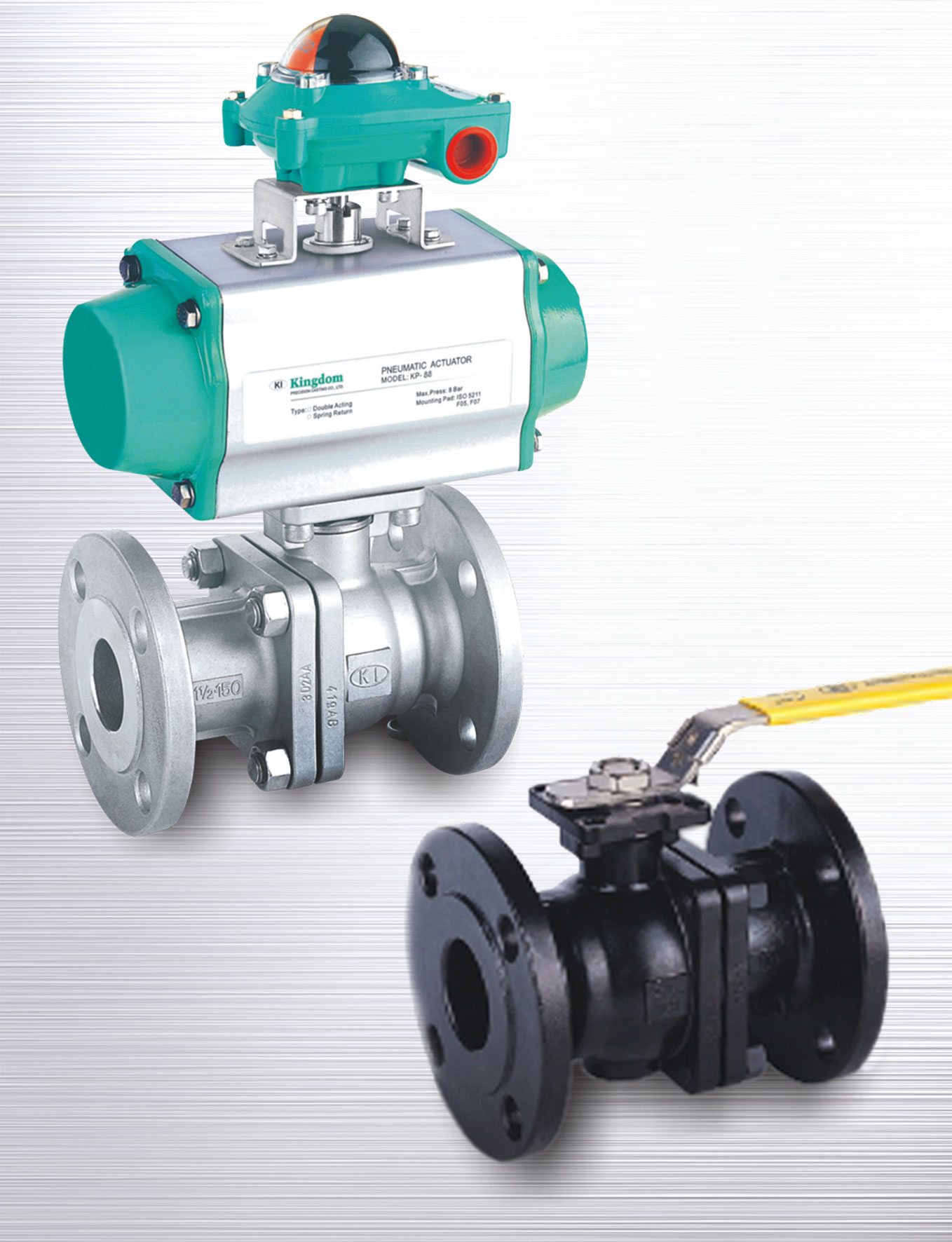

- Options: 1.Actuator 2.Limit Switch 3.Positioner
